Clinical workflow integration, diagnostic efficacy, and device utility

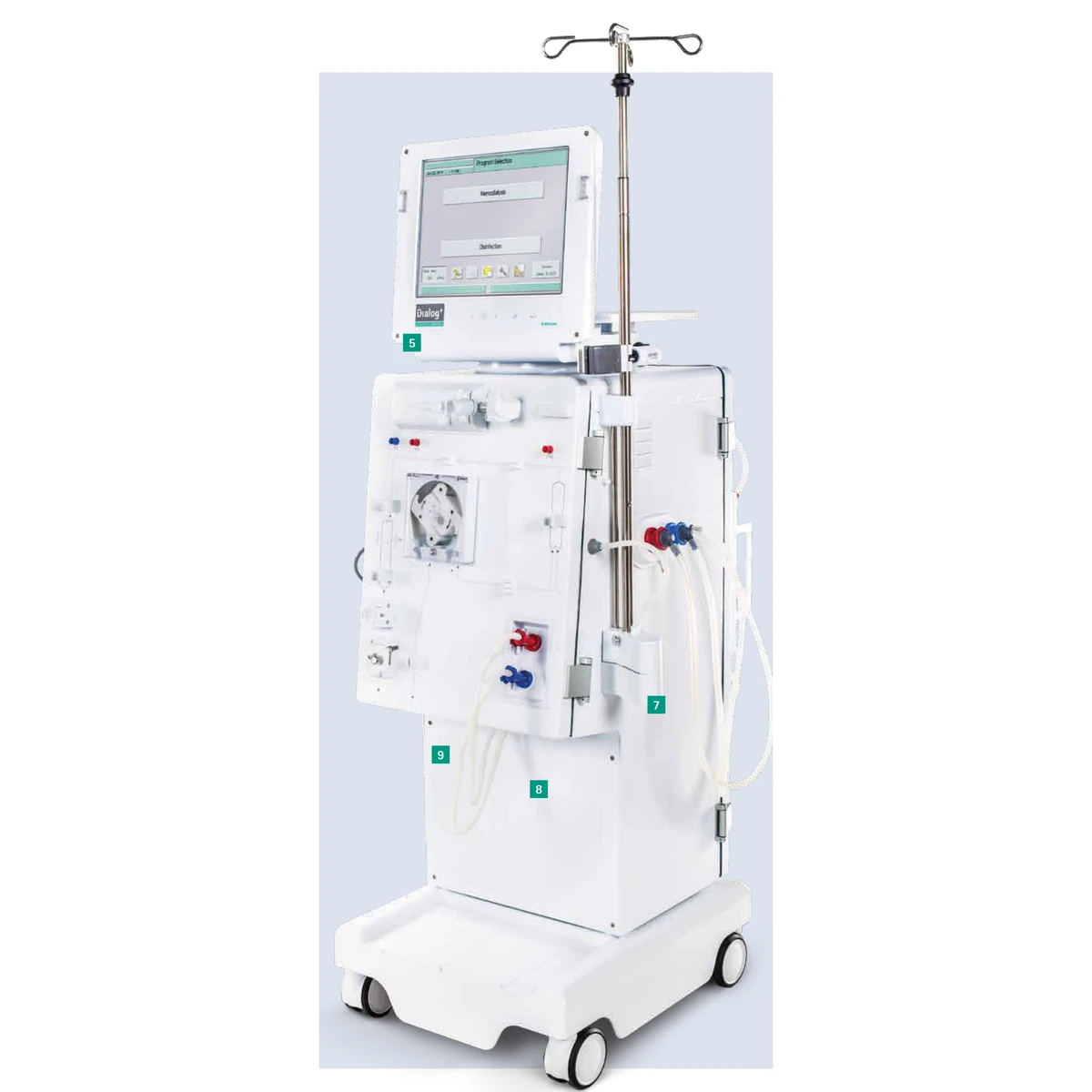

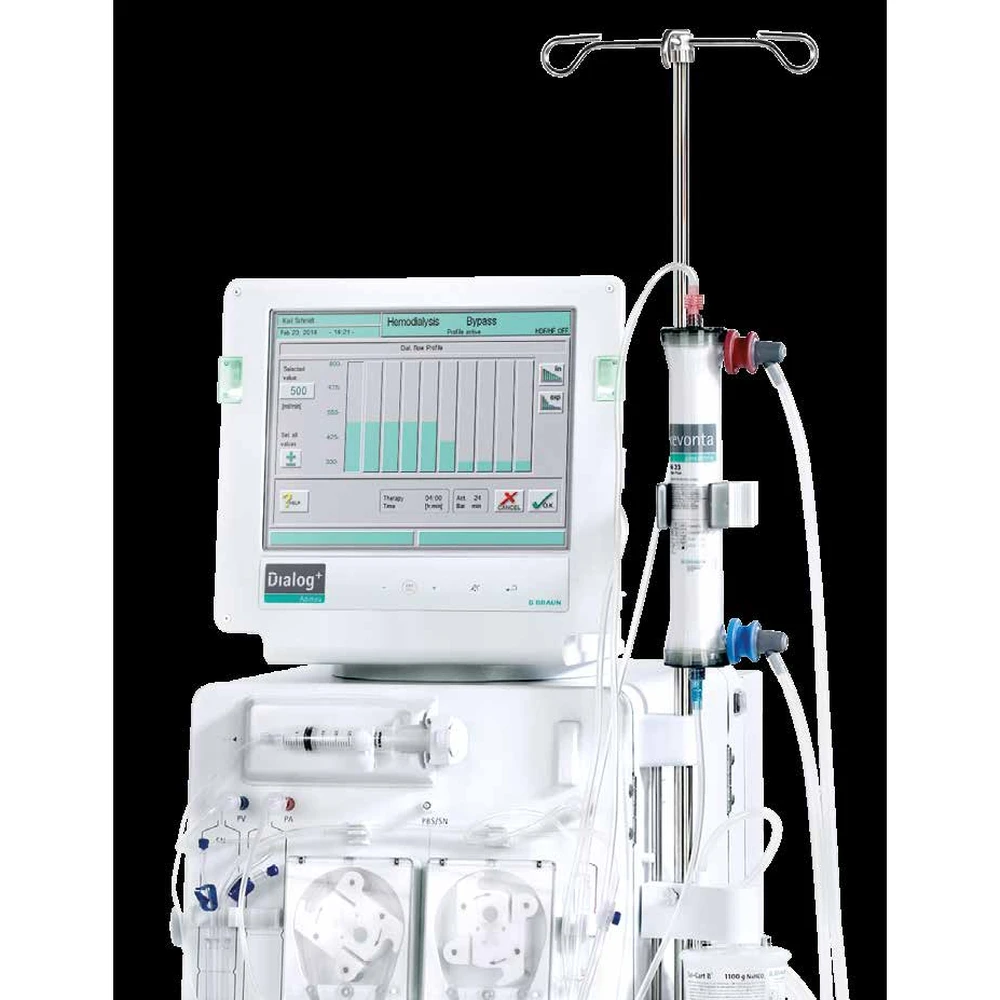

The B. Braun Dialog+ Hemodialysis System is a gold-standard German clinical workstation engineered by B. Braun Avitum AG (Melsungen, Germany) for super-specialty hospital nephrology units, intensive care facilities, and institutional renal care setups. Renowned globally for its precision volumetric balancing chamber technology, the Dialog+ system integrates Adimea® real-time ultraviolet spectroscopy for continuous dialysis dose (Kt/V) monitoring and bio Logic RR® Comfort intelligent blood pressure biofeedback that predictively stabilizes patient hemodynamics and reduces intradialytic hypotensive episodes by up to 52%. Equipped with the patented Ecoprime fluid delivery system, the Dialog+ allows pre/post-treatment priming and blood return using a single 1,000 m L saline container, substantially reducing clinical waste and operational costs. Fully compatible with central dialysate supply or standard bicarbonate canisters, automated thermal disinfection at 85°C, and bidirectional hospital Nexadia EMR networking. [DISCLAIMER: Hospital medical device capital hardware apparatus console only. Exclusively for institutional physical machinery and does not include prescription pharmaceuticals, single-use bloodline consumables, dialyzers, or chemical reagents.]
Core technical and clinical performance highlights
German Precision Hydraulic Balancing Chamber: Microprocessor-controlled closed volumetric balance chamber delivering ultrafiltration rates from 0.00 to 4.00 L/h with sub-1% UF pump tolerance.
Adimea® Continuous Real-Time Kt/V Monitoring: Patented non-invasive UV spectroscopy measuring molar concentration reduction of excreted toxins directly in spent dialysate without laboratory blood samples.
Bio Logic RR® Comfort Blood Pressure Biofeedback: World's only biofeedback system measuring direct patient blood pressure to automatically adjust ultrafiltration rates, reducing hypotensive episodes by 52%.
Ecoprime Streamlined Priming System: Reduces saline consumption by utilizing a single 1,000 m L Na Cl container for entire extracorporeal circuit priming, rinsing, and reinfusion.
Six Individualized Therapy Profiles: Programmable automated curves for Ultrafiltration, Sodium, Bicarbonate, Heparin, Dialysate Flow, and Dialysate Temperature.
Preventive Pressure Blood Entry (PBE) Monitoring: Continuous dialyzer inlet pressure sensing for hemolysis prophylaxis and secondary membrane clotting alert.
Nexadia® Seamless EMR Integration: Bidirectional Ethernet/RS232 interface connecting machine parameters, scale measurements, and hospital therapy records in real time.
Dual Automated Hygiene Architecture: Programmed hot thermal disinfection at ~85°C and validated chemical disinfection cycles for strict NABH/ISO hospital compliance.

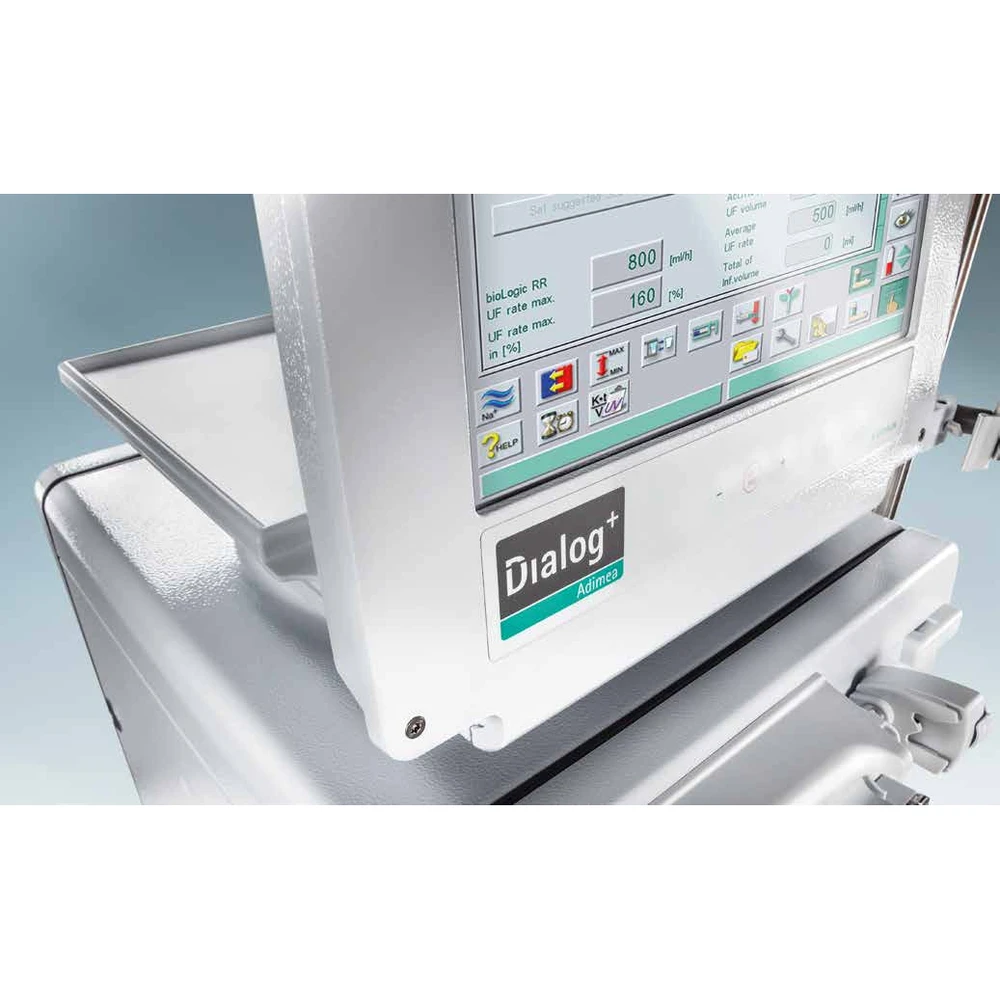

Physical Hardware Console Only: Complete electro-mechanical hospital hardware workstation with IV stand, high-resolution color touchscreen, and integrated battery power backup.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-90258 |
|---|---|
| Brand / Manufacturer | B. Braun |
| Medical Category | Hospital Equipment (Dialysis Machines) |
| Packaging | 1 Unit Complete Set with Trolley & Patient Circuit |
| Warranty | 1 Year Comprehensive Warranty |
| Blood Pump Delivery Range | 50 to 600 mL/min (2-roller precision pump) |
| Dialysate Flow Rate | 300 to 800 mL/min (±5% tolerance) |
| Ultrafiltration Working Range | 0 to +4,000 mL/h (Balance chamber volumetric control) |
| UF Measurement Accuracy | 0.2 mL per chamber cycle (<1% UF pump tolerance) |
| Dialysis Dose Technology | Adimea® Online UV Spectroscopy (Real-Time Kt/V, URR, spKt/V, eKt/V) |
| Hemodynamic Stabilization | bioLogic RR® Comfort Automated UF Regulation & Direct ABPM |
| Heparin Infusion Pump | 0.1 to 10 mL/h (Compatible with 10, 20, 30 mL syringes) |
| Dialysate Temperature | +33 °C to +40 °C (Selectable) |
| Disinfection Programs | Automated Thermal Disinfection (~85 °C) & Chemical Rinse Cycles |
| Safety Air Detector Suite | Continuous ultrasonic line bubble detector with automatic clamp |
| Pressure Monitoring Range | Arterial PA: -400 to +400 mmHg | Venous PV: 20 to +390 mmHg | PBE: 0 to +700 mmHg |
| Power Requirements | 230 V AC, 50/60 Hz with Integrated Battery Power Backup |
| Physical Dimensions & Weight | 510 x 637 x 1678 mm | Approx. 85 kg (Empty) |
| Manufacturer & Origin | B. Braun Avitum AG, Melsungen, Germany |
| Warranty & Support | 1 Year Comprehensive Warranty with Onsite Biomedical Installation & Calibration |
Standard operating guidance for biomedical technicians and clinical staff
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine B. Braun Dialog+ Hemodialysis Machine (Adimea & bioLogic RR) units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
