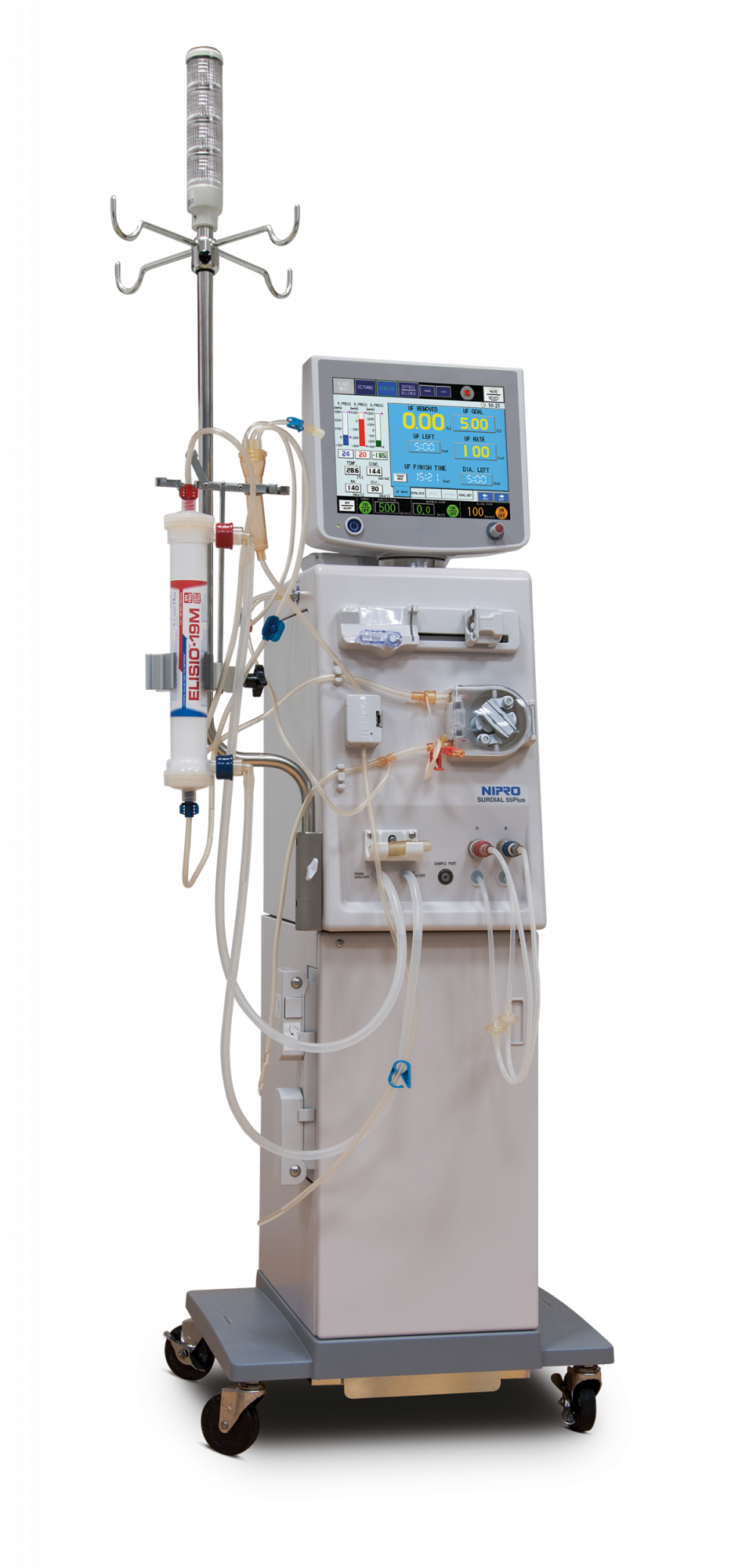

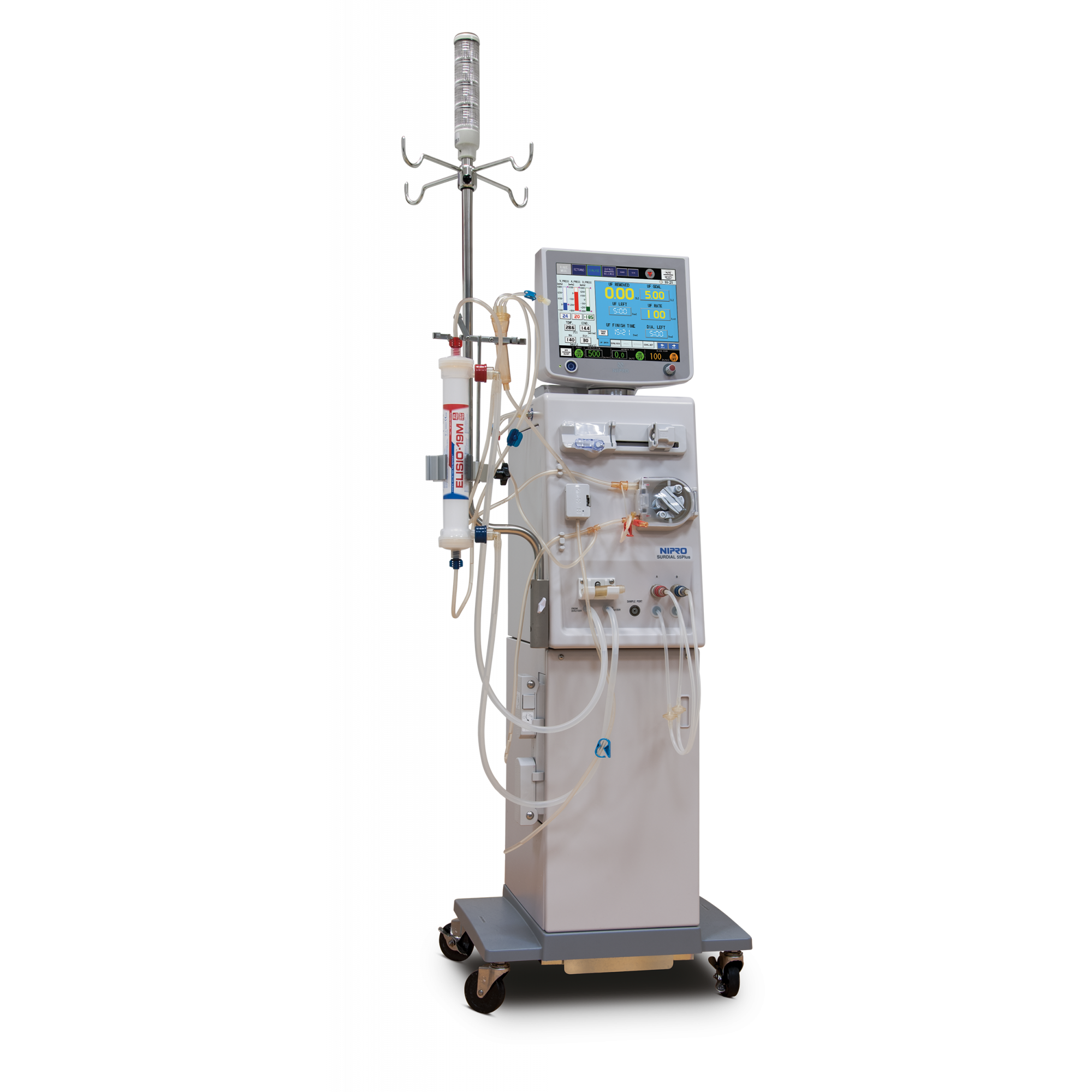

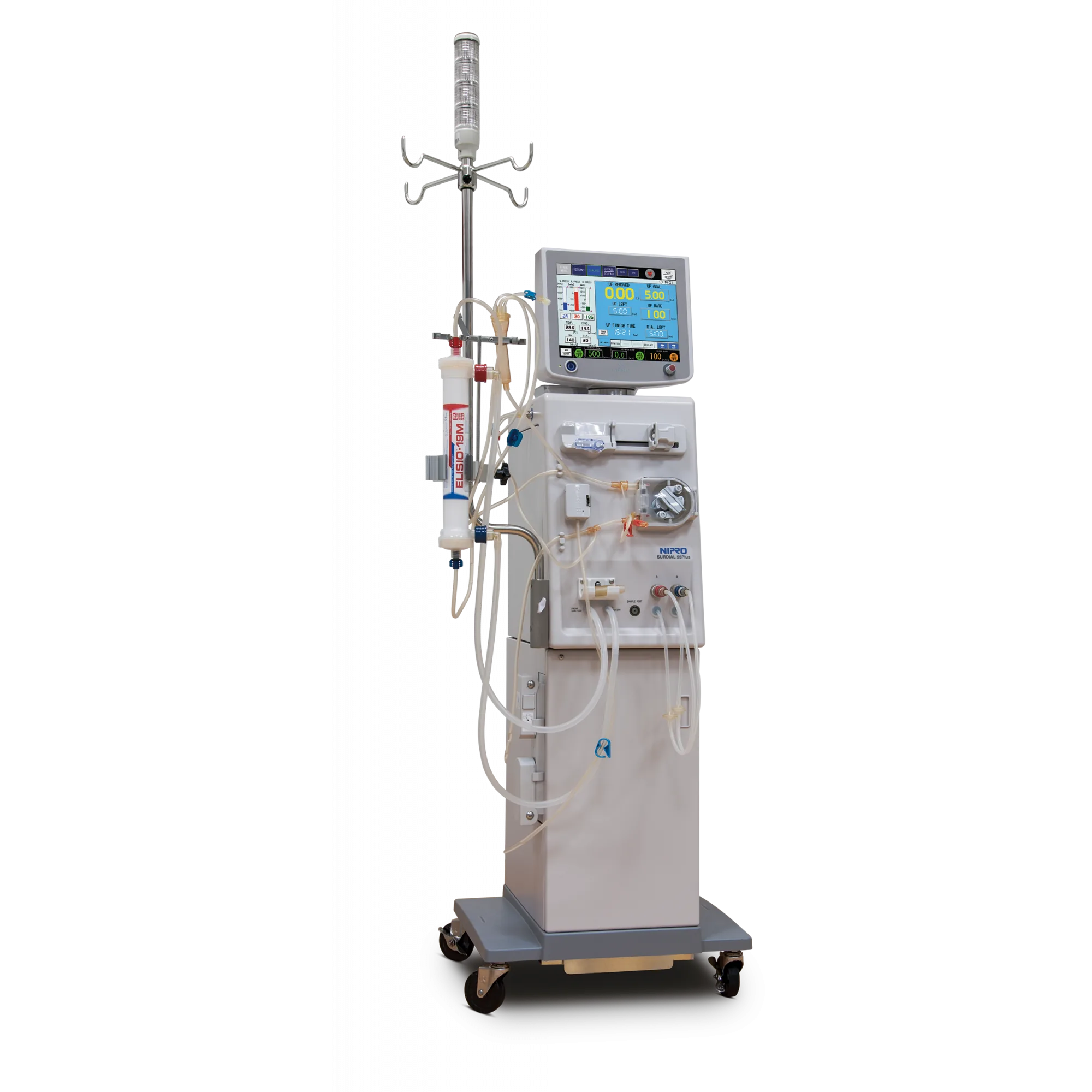

Nipro Surdial 55 Plus Hemodialysis Machine
Institutional Wholesale Rate • GST Input Tax Credit Applicable
1 Year Comprehensive Warranty
OEM Direct Cover
24-48hr Dispatch
Insured Packaging
GST Compliant
Full Tax Credit
095554 22455
Sales Desk
Medical Grade Standards
ISO & CE compliant certified clinical calibration
Pan-India Insured Transit
Damage-proof wooden crating with freight tracking
Biomedical Setup Support
Pre-purchase consultation & operational guidance
Direct Factory Warranty
Strict B2B Policy with OEM technical claim support
Product Overview & Clinical Scope
Clinical workflow integration, diagnostic efficacy, and device utility
The Nipro Surdial 55 Plus (Surdial 55+) Hemodialysis System is a premier clinical dialysis workstation renowned worldwide for Japanese engineering excellence, robust hydraulic reliability, and low total cost of ownership. Designed specifically to meet the intensive demands of hospital nephrology departments and high-turnover dialysis centers, the Surdial 55 Plus combines intuitive operation with high clinical precision. Featuring a 10.4-inch rotatable and tiltable color LCD touchscreen, the system provides nephrologists and technicians with instant graphical parameter overviews, trend monitoring, and customizable treatment profiles. The patented Continuous Flow (CF) flushing unit accelerates machine preparation and shortens inter-treatment turnaround times by up to 40%, optimizing patient throughput without compromising hygiene. With its advanced volumetric ultrafiltration control, automated heat and chemical disinfection programs, ultrasonic micro-bubble detection down to 0.01 m L, and integrated Kt/V real-time dialysis adequacy calculations (Watson formula), the Nipro Surdial 55 Plus stands as a gold standard in modern renal replacement therapy. [DISCLAIMER: 100% Brand New hospital medical equipment hardware apparatus only. This listing is exclusively for the physical electronic/mechanical dialysis machinery supplied with genuine manufacturer documentation, official 1-year warranty, and GST invoice. Does not include prescription pharmaceuticals, dialyzers, or single-use tubing disposables.]
Key Clinical Capabilities & Features
Core technical and clinical performance highlights
100% Brand New Equipment: Authentic, brand-new Japanese engineering supplied with official factory packaging, serial certificate, and comprehensive 1-year warranty.
10.4-Inch Rotatable Touchscreen: High-contrast color display with ergonomic swivel and tilt mechanism, displaying real-time pressure curves, fluid balance, and clinical trends.
Continuous Flow (CF) Flushing Unit: Patented hydraulic washdown circuit reducing machine priming, rinsing, and preparation time by up to 40% between patient sessions.
High-Precision Volumetric UF Control: Microprocessor-governed balancing system ensuring stable, gentle ultrafiltration to safeguard hemodynamically unstable patients.
Real-Time Kt/V Dialysis Adequacy: Built-in Watson formula computational engine continuously calculating and displaying urea clearance efficiency throughout the session.
Ultrasonic Micro-Bubble Detection: High-sensitivity acoustic sensor capable of detecting microscopic air bubbles as small as 0.01 m L, maximizing vascular access safety.
Automated Thermal & Chemical Disinfection: Programmable hot water rinse and chemical sterilization routines (citric acid, hypochlorite, peracetic acid) for certified hospital infection compliance.
Programmable Sodium & UF Profiling: Step, linear, and parabolic profiling modes for sodium concentration and ultrafiltration rates to prevent dialysis disequilibrium syndrome.
Internal Emergency Battery Backup: Provides uninterrupted operation for blood pump, alarms, and patient safety monitoring for 30 minutes during main power failure.
Turnkey Pan-India Delivery & Support: Delivered, calibrated, and installed on-site across India by SMD Medicare's certified biomedical engineering team.
Technical Specifications
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-90257 |
|---|---|
| Brand / Manufacturer | Nipro |
| Medical Category | Hospital Equipment (Dialysis Machines) |
| Packaging | Original Manufacturer Sealed Heavy-Duty Crate |
| Shelf Life | 10+ Years Operational Life |
| Warranty | 1 Year Comprehensive Warranty |
| Display Interface | 10.4-Inch Ergonomic Swivel & Tilt Color LCD Touchscreen |
| Blood Pump Delivery Rate | 0 – 500 mL/min (Continuous adjustment) |
| Dialysate Flow Rate | 300 – 700 mL/min (Variable selectable settings) |
| Ultrafiltration Balancing Rate | 0.00 – 4.00 L/h (High-precision volumetric balance) |
| Dialysis Modalities | Standard Hemodialysis (HD), Isolated UF (ISO-UF), Bicarbonate & Acetate Dialysis |
| Flushing Architecture | Integrated Continuous Flow (CF) Fast-Priming Unit |
| Dialysate Temperature Range | 32.0°C – 39.0°C (Digital temperature control) |
| Conductivity Range | 12.0 – 16.0 mS/cm |
| Venous Pressure Range | -100 to +500 mmHg |
| Arterial Pressure Range | -300 to +300 mmHg |
| Micro-Bubble Detection | Ultrasonic Acoustic Bubble Sensor (Down to 0.01 mL sensitivity) |
| Blood Leak Detection | Optical Photodiode Sensor (<0.5 mL/min) |
| Dialysis Adequacy Calculator | Integrated Real-time Kt/V Calculation (Watson Formula) |
| Micro-Precision Heparin Pump | 0.1 to 9.9 mL/h (Supports 10, 20, 30 mL syringes) |
| Automated Disinfection Cycles | Automated Thermal Disinfection & Chemical Rinsing (Citric Acid, Bleach, Peracetic Acid) |
| Emergency Battery Backup | Internal Rechargeable Battery (≥30 Minutes Runtime) |
| Machine Dimensions & Weight | 285 mm (W) x 420 mm (D) x 1365 mm (H); Approx. 73 kg |
| Power Supply Requirements | 220 – 240 V AC, 50/60 Hz |
| Product Classification | 100% Brand New Hospital Dialysis Machinery Hardware |
| Condition & Warranty | 100% Brand New with Official 1-Year Comprehensive On-Site Warranty & GST Invoice |
Clinical Usage & Operational Protocols
Standard operating guidance for biomedical technicians and clinical staff
Verified Doctor & Client Reviews
No reviews published yet
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Frequently Asked Procurement Questions
Key questions regarding warranty, logistics, GST billing, and clinical installation
What warranty and support is provided with this equipment?
All medical equipment carries official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and factory biomedical engineering evaluation.
How is heavy hospital equipment packed and shipped?
We use damage-proof wooden crate packaging and insured freight logistics delivering across all Indian states with real-time tracking within 3 to 7 business days.
Do you provide official GST Invoices and Proforma Quotations?
Yes, 100% compliant GST invoices with standard HSN codes are provided for hospitals, clinics, and dealers to claim full Input Tax Credit (ITC).
How is installation and clinical setup handled?
We provide pre-installation technical checklists, complete user operating manuals, and video/on-site biomedical engineer guidance for seamless clinical deployment.
