Clinical workflow integration, diagnostic efficacy, and device utility

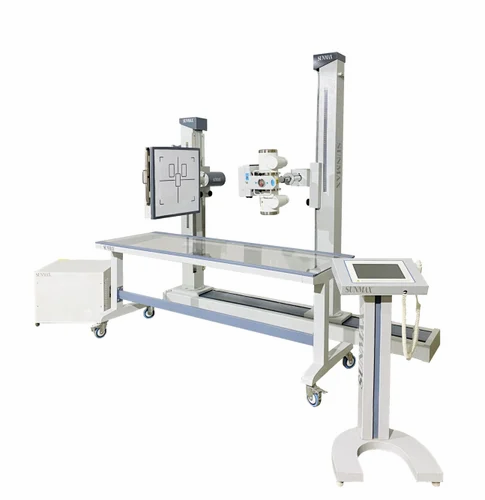

The SPICA 40k W High-Frequency Digital Radiography System represents a state-of-the-art full-room digital X-ray suite engineered for tertiary care hospitals, trauma centers, and advanced imaging institutes in India. Equipped with a 40k W high-frequency inverter generator and a direct-deposit 43x43 cm (17x17 inch) Cesium Iodide (Cs I) Flat Panel Detector, the system captures instant, high-contrast digital radiographs in under 3 seconds while minimizing cumulative radiation exposure. Designed for maximum radiological efficiency, the system includes a 4-way floating carbon fiber patient table, a motorized counterbalanced vertical chest Bucky stand, and an advanced DICOM 3.0 acquisition workstation for rapid PACS integration. Available through SMD Medicare with turnkey hospital installation, comprehensive warranty, and pan-India service coverage, it provides healthcare facilities with a premium, filmless digital imaging solution.
Core technical and clinical performance highlights
40 k W high-frequency inverter X-ray generator, providing up to 150 k Vp and 500 m A.
Rotating anode X-ray tube featuring dual focal spots (0.6/1.2 mm) and a 200 k HU heat unit capacity.
Integrated 43x43 cm (17x17 inch) amorphous silicon (a-Si) flat panel detector (FPD).
Detector pixel pitch of 139 µm, producing a 3072 x 3072 effective image matrix.
Four-way floating carbon fiber tabletop with a maximum patient load capacity of 250 kg.
Vertical Bucky stand allowing source-to-image distance (SID) adjustments from 100 cm to 180 cm.
Acquisition workstation equipped with a 2 MP medical-grade monitor and DICOM 3.0 interfacing for PACS.
Anatomical Programmed Radiography (APR) modes with advanced post-processing algorithms for image optimization.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30258 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Generator Type | High Frequency Inverter |
| Power Output | 100mA / 300mA / 40kW / 50kW (varies by specific model) |
| kVp Range | 40 kVp to 125 kVp (adjustable in 1 kV steps) |
| mA Range | 10 mA to 500 mA (model dependent) |
| Exposure Time | 0.001 to 6.3 seconds |
| mAs Range | 0.1 to 500 mAs |
| X-Ray Tube | Rotating Anode / Stationary Anode |
| Focal Spot | Small: 0.6mm, Large: 1.2mm |
| Collimator | Manual or Motorized with LED light field indicator |
| Display | Digital LED/LCD Control Panel |
| Anatomical Programs (APR) | Pre-programmed anatomical selections for quick setup |
| Protection | Over-voltage, over-current, tube overload protection |
| Power Supply | 220V/240V AC, Single/Three Phase, 50/60 Hz |
| Mobility | Heavy-duty castors with braking system (for mobile units) |
| Certifications | AERB Approved / CE / ISO Certified |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine SUNMAX SPICA 40kW HF Digital Radiography System units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
