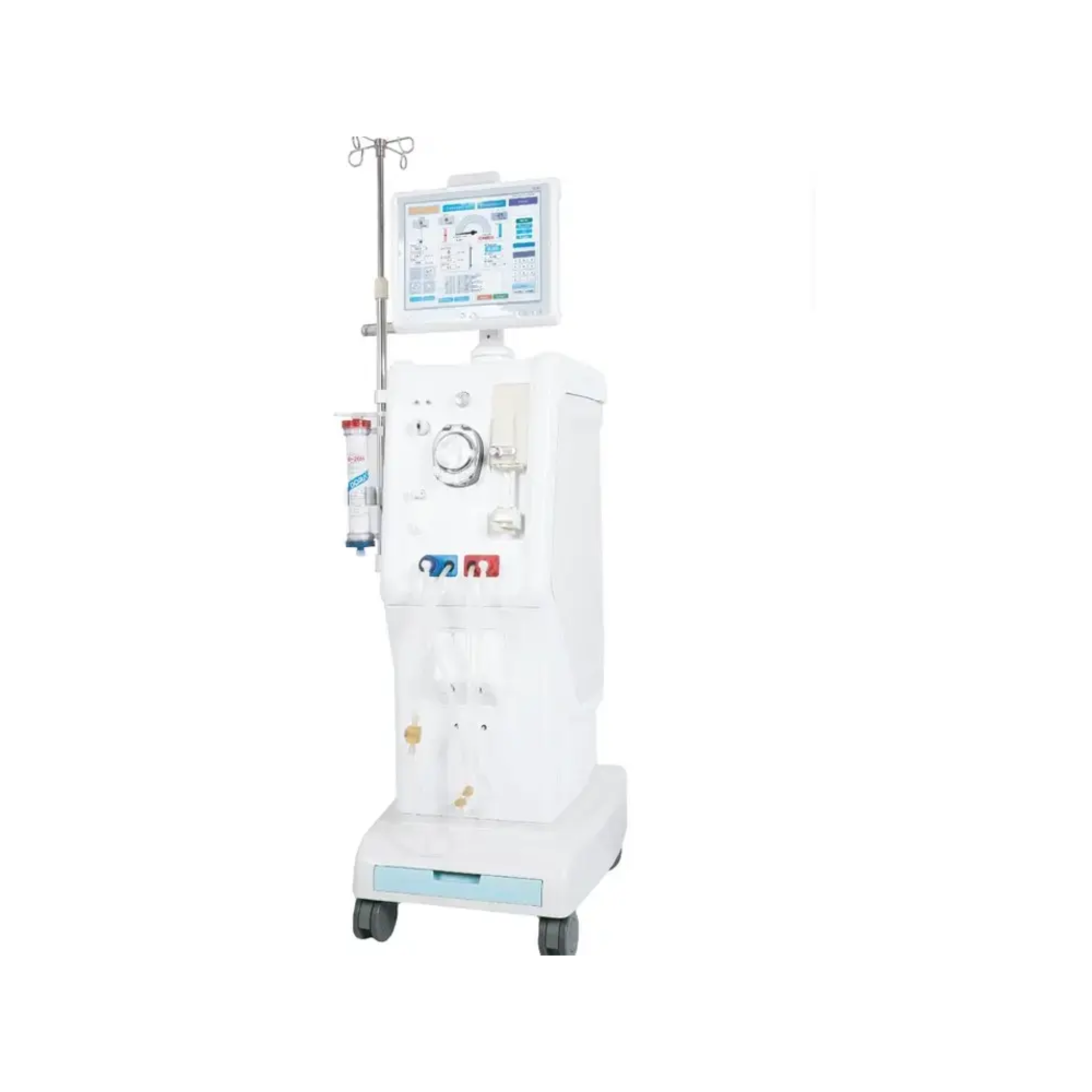

Bain Medical DORA-6000 Hemodialysis Machine
Institutional Wholesale Rate • GST Input Tax Credit Applicable
1 Year Comprehensive Warranty
OEM Direct Cover
24-48hr Dispatch
Insured Packaging
GST Compliant
Full Tax Credit
095554 22455
Sales Desk
Medical Grade Standards
ISO & CE compliant certified clinical calibration
Pan-India Insured Transit
Damage-proof wooden crating with freight tracking
Biomedical Setup Support
Pre-purchase consultation & operational guidance
Direct Factory Warranty
Strict B2B Policy with OEM technical claim support
Product Overview & Clinical Scope
Clinical workflow integration, diagnostic efficacy, and device utility
The Bain Medical DORA-6000 Hemodialysis Machine is an advanced clinical renal replacement workstation engineered for high-demand hospital dialysis departments, intensive care units (ICU), and private nephrology centers. Equipped with a closed volumetric ultrafiltration balancing chamber, intuitive 15-inch high-resolution color touchscreen, and an automated multi-stage hydraulic hygiene system, the DORA-6000 delivers maximum therapeutic efficacy, patient safety, and clinical ease of use. Designed to support both acetate and bicarbonate dialysis modalities, the DORA-6000 features real-time online monitoring of transmembrane pressure (TMP), blood volume clearance, arterial/venous line pressures, and dialysate conductivity. Its intelligent hydraulic circuitry ensures ultra-precise fluid removal, preventing sudden hypotensive episodes and muscle cramps during dialysis sessions. [DISCLAIMER: 100% Brand New hospital medical equipment hardware apparatus only. This listing is exclusively for the physical electronic/mechanical dialysis machinery supplied with genuine manufacturer documentation, official 1-year warranty, and GST invoice. Does not include prescription pharmaceuticals, dialyzers, or single-use tubing disposables.]
Key Clinical Capabilities & Features
Core technical and clinical performance highlights
100% Brand New Equipment: Genuine, factory-fresh hemodialysis machine directly supplied with official serial certificates, manufacturer documentation, and full 1-year on-site comprehensive warranty.
15-Inch Color Touchscreen Interface: Large, high-resolution interactive graphical LCD monitor providing continuous visualization of pressure curves, ultrafiltration trends, conductivity, and treatment parameters.
Closed Volumetric Ultrafiltration Balancing: Advanced microprocessor-controlled fluid balancing system delivering ultra-precise fluid removal from 0.00 to 4.00 L/h.
Comprehensive Therapy Modalities: Complete clinical support for standard double-needle and single-needle hemodialysis therapy with customizable treatment profiling.
Triple Safety Protection Architecture: High-sensitivity ultrasonic air bubble detectors, optical blood leak sensor, and dual-redundant venous/arterial pressure transducers.
Automated Multi-Stage Hygiene System: Fully automated hot water/citric acid thermal disinfection and chemical cleaning cycles (peracetic acid/sodium hypochlorite) for institutional hospital infection control.
Programmable Sodium & UF Profiling: Multi-pattern sequential ultrafiltration and customizable sodium profiles to minimize clinical dialysis complications and cramps.
Micro-Precision Heparin Delivery Pump: Motorized syringe infusion drive supporting 0.1 to 10.0 m L/h with automated bolus delivery and programmable stop times.
Integrated Battery Backup: High-capacity internal battery provides uninterrupted operation, arterial/venous line clamping, and therapy data retention for over 30 minutes during power outages.
Nationwide Clinical Installation & Training: Complete on-site biomedical installation, water testing calibration, and clinical technician training across India by SMD Medicare.
Technical Specifications
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-90256 |
|---|---|
| Brand / Manufacturer | Bain Medical |
| Medical Category | Hospital Equipment (Dialysis Machines) |
| Packaging | Original Manufacturer Sealed Heavy-Duty Crate |
| Shelf Life | 10+ Years Operational Life |
| Warranty | 1 Year Comprehensive Warranty |
| Display Interface | 15-Inch High-Resolution Color Touchscreen LCD |
| Blood Pump Delivery Rate | 15 – 600 mL/min (Adjustable) |
| Dialysate Flow Rate | 300 – 800 mL/min (Selectable in 10 mL increments) |
| Ultrafiltration Balancing Rate | 0.00 – 4.00 L/h (±30 g/h Volumetric Precision) |
| Dialysis Modalities | Hemodialysis (HD), Isolated UF (ISO-UF), Single & Double Needle Therapy |
| Dialysate Temperature | 34.0°C – 39.5°C (Programmable) |
| Conductivity Range | 12.5 – 15.8 mS/cm |
| Transmembrane Pressure (TMP) | -100 mmHg to +500 mmHg |
| Venous Pressure Monitoring | -100 mmHg to +500 mmHg |
| Arterial Pressure Monitoring | -300 mmHg to +300 mmHg |
| Safety Detection Suite | Ultrasonic Air Bubble Detector & Optical Blood Leak Sensor (<0.5 mL/min) |
| Micro-Precision Heparin Pump | 0.1 to 10.0 mL/h (Syringe sizes 10, 20, 30, 50 mL) |
| Automated Disinfection Cycles | Thermal Hot Rinse (Citric Acid) & Chemical Disinfection (Peracetic Acid / Bleach) |
| Emergency Battery Backup | Integrated High-Capacity Battery (≥30 Minutes Continuous Runtime) |
| Power Supply Requirements | 220 – 240 V AC, 50/60 Hz, Single Phase |
| Water Supply Requirements | 1.5 to 6.0 bar (Medical-Grade RO Water Compliance) |
| Product Classification | 100% Brand New Hospital Dialysis Machinery Hardware |
| Condition & Warranty | 100% Brand New with Official 1-Year Comprehensive On-Site Warranty & GST Invoice |
Clinical Usage & Operational Protocols
Standard operating guidance for biomedical technicians and clinical staff
Verified Doctor & Client Reviews
No reviews published yet
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Frequently Asked Procurement Questions
Key questions regarding warranty, logistics, GST billing, and clinical installation
What warranty and support is provided with this equipment?
All medical equipment carries official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and factory biomedical engineering evaluation.
How is heavy hospital equipment packed and shipped?
We use damage-proof wooden crate packaging and insured freight logistics delivering across all Indian states with real-time tracking within 3 to 7 business days.
Do you provide official GST Invoices and Proforma Quotations?
Yes, 100% compliant GST invoices with standard HSN codes are provided for hospitals, clinics, and dealers to claim full Input Tax Credit (ITC).
How is installation and clinical setup handled?
We provide pre-installation technical checklists, complete user operating manuals, and video/on-site biomedical engineer guidance for seamless clinical deployment.
