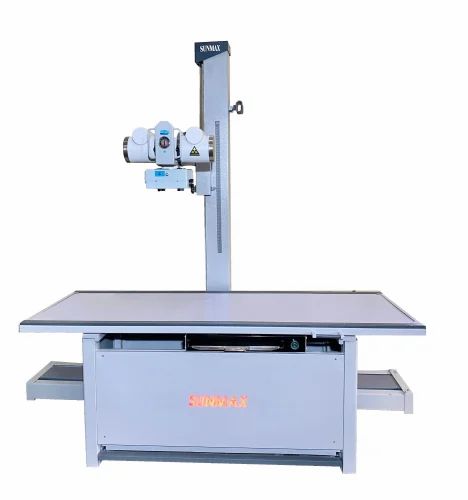

The 300mA X-Ray Machine with Floating Top Table is an ergonomic diagnostic solution designed for rapid, strain-free patient positioning in high-volume hospital trauma centers, orthopedics, and surgical facilities. Featuring a heavy-duty 4-way floating tabletop with silent electromagnetic foot-pedal brakes, this system allows technicians to center complex trauma patients without requiring physical patient repositioning.
Includes complete site inspection, room shielding verification, equipment delivery, on-site commissioning by factory-trained biomedical engineers, AERB e-LORA portal documentation support, and a comprehensive 12-month warranty with guaranteed spare parts availability.
Core technical and clinical performance highlights
High-frequency X-ray generator with a maximum output of 300m A and a 40-125 k Vp range.
Dual focal spot X-ray tube (e.g., 0.8/1.5 mm) for varying resolution requirements in radiography.
Exposure time settings configurable from 0.001 seconds to 6.3 seconds, with m As range of 1-300 m As.
Floating tabletop design offering longitudinal and transverse movement with electromagnetic braking for precise patient positioning.
Tabletop constructed from low-attenuation carbon fiber or phenolic resin to minimize X-ray dose to the patient.
Integrated oscillating Bucky device, typically featuring a 103 L/inch, 8:1 ratio grid for enhanced image contrast.
Manual multi-leaf light beam collimator with field rotation for accurate beam limitation.
Microprocessor-controlled operational console with digital display for k Vp, m A, and m As parameters.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30260 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Model Type | 300mA X-Ray Suite with 4-Way Floating Top Table |
| Generator Power | 30 kW High-Frequency Inverter (40 kHz, Microcontroller Console) |
| Output Stations | 50, 100, 150, 200, 300 mA |
| kVp Range | 40 kVp to 125 kVp (1 kVp incremental adjustments) |
| mAs Range | 0.1 to 300 mAs across 32 steps |
| Tabletop Dimensions | 2,000 mm length x 750 mm width x 750 mm height |
| Tabletop Movement | 4-Way Float: Longitudinal travel ±450 mm, Transverse travel ±120 mm |
| Tabletop Locking | Electromagnetic brakes with full-length foot-switch release |
| Patient Weight Capacity | 220 kg (485 lbs) maximum load rating |
| X-Ray Tube | Rotating Anode with dual focal spots (1.0 mm / 2.0 mm) |
| Anode Thermal Rating | 140 kHU with thermal cut-off sensor |
| Bucky Movement | Motorized oscillating bucky with 85 L/inch, 8:1 ratio grid |
| Cassette Compatibility | Supports 8x10 to 14x17 inch Darkroom, CR and Wireless DR Detectors |
| Collimator | Multi-leaf manual collimator with LED centering light field |
| AERB Compliance | Type Approved under AERB/SC/MED-2 guidelines |
| Power Supply | 415V AC, 3-Phase, 50 Hz (30 kVA line capacity) |
| Certifications | AERB Approved, ISO 13485:2016, CE Certified |
