Clinical workflow integration, diagnostic efficacy, and device utility

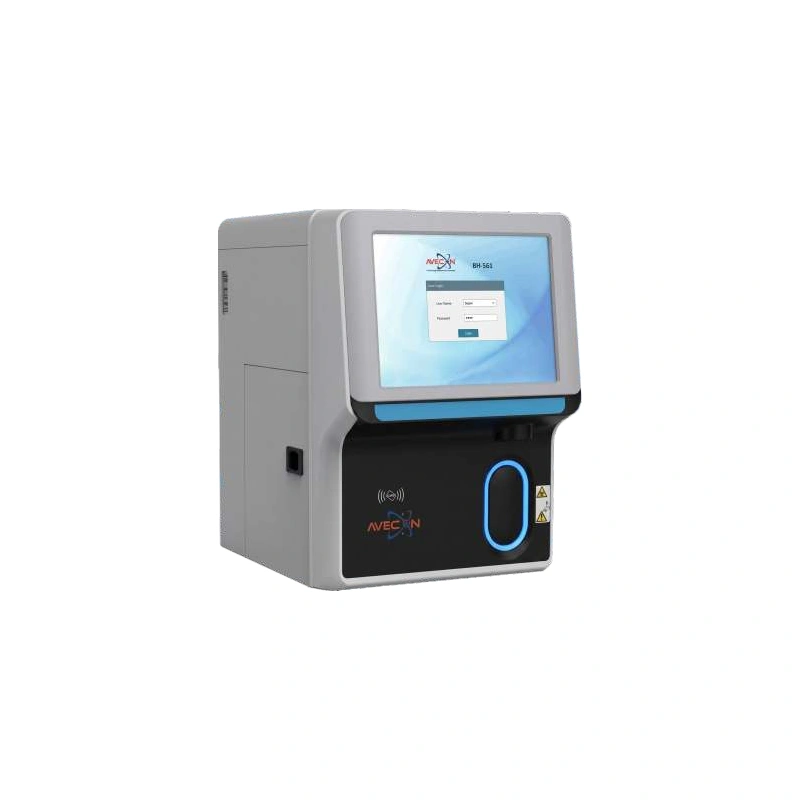

The Avecon Max COUNT BH-56I is an advanced 5-part automated clinical hematology analyzer developed and manufactured in India by Avecon Healthcare Pvt. Ltd. Engineered to provide comprehensive cellular diagnostics for corporate hospitals, tertiary referral pathology laboratories, and diagnostic chains, the BH-56I integrates advanced sheath flow cytometry (FCM) with tri-angle semiconductor laser scatter technology to deliver authoritative white blood cell differential analysis. The analyzer provides 25 reportable diagnostic parameters and 12 critical research parameters (including LIC%, LIC#, ALY%, ALY#, PLT Clumps#, PLT Clumps%, Lip#, Lip%, NRBC#, NRBC%, Blast#, Blast%), 3 histograms (WBC, RBC, PLT), 3 DIFF scattergrams, and 1 dedicated BASO scattergram. Its double optical counting channel provides dedicated differential optics, ensuring peak accuracy in discriminating basophils and abnormal leukocyte populations. Operating on a low sample consumption of only 15µL of whole blood (20µL pre-diluted) at a constant throughput of 60 samples per hour, the BH-56I delivers high operational efficiency using only two lyse reagents. Featuring a 10.4-inch true-color TFT touchscreen, one-click troubleshooting technology, onboard storage for 50,000 patient results with scattergrams, and bidirectional HL7 LIS integration, SMD Medicare provides the Max COUNT BH-56I with institutional B2B pricing, turnkey installation, and pan-India warranty.
Core technical and clinical performance highlights
Sheath Flow Cytometry (FCM) + Tri-Angle Laser Scatter: Advanced optical flow cytometry for definitive WBC 5-part differentiation.
25 Reportable + 12 Research Parameters: Comprehensive profiling including NRBC, Blasts, PLT Clumps, Lipids, and Atypical Lymphocytes.
Dual Optical Counting Channels: Independent optical channels for differential and basophil analysis for superior clinical precision.
4 Graphical Scattergrams & 3 Histograms: 3 DIFF scattergrams + 1 BASO scattergram alongside WBC, RBC, and PLT histograms.
Low Sample Consumption (15µL): Consumes only 15µL whole blood (20µL pre-diluted) for complete 5-part hematology testing.
Reagent-Saving Design: Operates using only two lyses, substantially lowering per-test consumable overhead.
Constant 60 Tests/Hour Speed: Continuous high-speed sample aspiration and automated probe washing.
10.4-Inch Color Touch Display: True-color TFT touchscreen displaying full multi-angle scattergrams simultaneously.
One-Click Troubleshooting: Intelligent onboard diagnostic system quickly identifies and eliminates system faults.
Bidirectional LIS / HIS (HL7 Protocol): 4 USB ports and LAN port with full HL7 compliance for hospital database integration.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-300257 |
|---|---|
| Brand / Manufacturer | Avecon |
| Medical Category | Medical Devices (Analyzers) |
| Reportable Parameters (25) | WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Research Parameters (12) | LIC%, LIC#, ALY%, ALY#, PLT Clumps#, PLT Clumps%, Lip#, Lip%, NRBC#, NRBC%, Blast#, Blast% |
| Scattergrams & Histograms | 3 DIFF scattergrams, 1 BASO scattergram, 3 histograms (WBC, RBC, PLT) |
| Throughput | Constant 60 samples per hour |
| Measurement Principles | Sheath Flow Cytometry (FCM) + Tri-angle laser scatter for WBC; Impedance method for RBC & PLT; Cyanide-free method for HGB |
| Sample Volume | Whole blood: 15µL, Pre-diluted blood: 20µL |
| Display Interface | 10.4-inch true-color TFT Touch Screen |
| Reagents Required | Hematology analyzer lyse (only 2 lyses), Diluent support, Probe cleanser |
| Data Storage Capacity | Up to 50,000 results including numeric data and 4 graphical scattergrams |
| Linearity Range | WBC: 0-500 x 10^9/L, RBC: 0-8 x 10^12/L, PLT: 0-5000 x 10^9/L, HGB: 0-250 g/L |
| Interface & Communication | 4 USB ports, 1 LAN port (supports HL7 protocol, Bi-directional LIS connection) |
| Operating Environment | Temperature: 10°C - 30°C, Humidity: 20% - 85%, Air pressure: 61.6 - 106 kPa |
| Dimensions & Weight | 420 mm (L) x 295 mm (W) x 430 mm (H), Net Weight: ≤ 24 kg |
