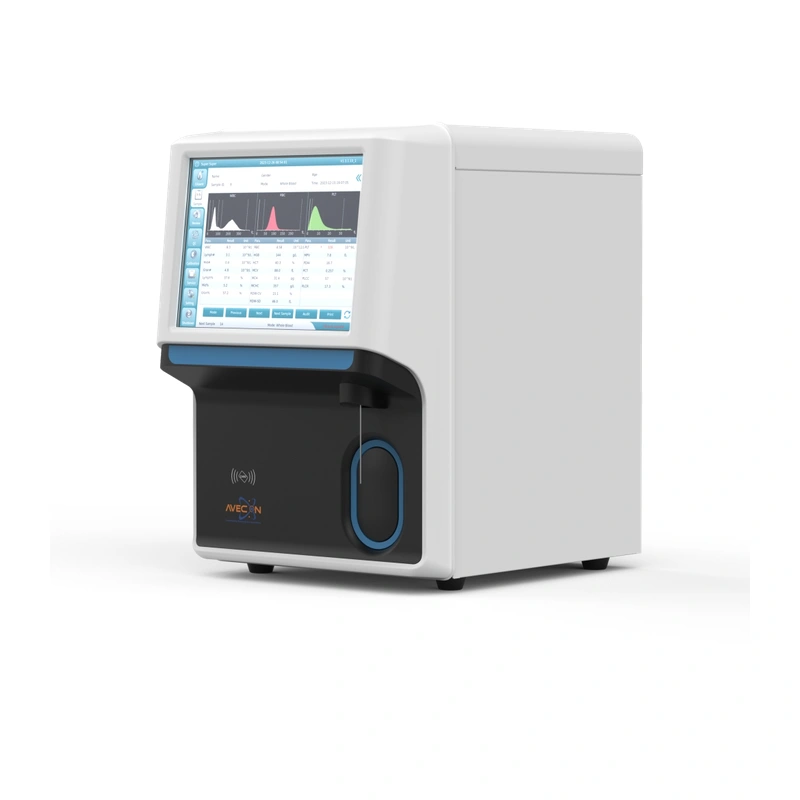

The Avecon Max COUNT HMT-60P is a modern generation 3-part differential automated hematology analyzer manufactured in India by Avecon Healthcare Pvt. Ltd. Engineered for clinical pathology laboratories, hospital diagnostic units, and nursing facilities, the HMT-60P combines high-precision cell counting with low operational running costs. It utilizes a double-chamber counting aperture design (WBC 100µm aperture, RBC/PLT 70µm aperture) powered by proven electrical impedance technology and cyanide-free photoelectric colorimetry for hemoglobin determination. The analyzer delivers 21 diagnostic parameters including P_LCC and P_LCR, supported by 3 high-definition histograms and intelligent abnormal cell flags for erythrocytes, leukocytes, and platelets. With a constant throughput of 60 samples per hour and micro-sample aspiration requirements of only 9µL of whole blood (20µL pre-diluted), it is exceptionally suitable for pediatric, neonatal, and elderly patients. Operating on a highly economical 2-reagent architecture (Diluent + Lyse only) with internal diluent pre-heating, the HMT-60P slashes daily consumable expenditure. The instrument features a large 10.4-inch color touchscreen (800x600 resolution), massive internal non-volatile memory storing up to 500,000 complete test results with histograms, an integrated 57mm thermal printer, and full bidirectional LIS communication supporting the HL7 protocol. SMD Medicare supplies the Avecon HMT-60P with full manufacturer warranty, nationwide installation, and OEM reagent support.
Core technical and clinical performance highlights
Constant 60 Samples/Hour Throughput: Swift, uninterrupted sample analysis with double-chamber counting aperture design.
21 Diagnostic Parameters & 3 Histograms: Comprehensive CBC reporting including WBC, LYM#, MID#, GRAN#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT, P-LCC, and P-LCR.
Ultra-Low 9µL Micro-Sample: Requires only 9µL whole blood (20µL pre-diluted), perfect for neonatal, pediatric, and difficult capillary blood draws.
Economical 2-Reagent System: Operates using only Diluent and Lyse with internal lyse storage and diluent pre-heating for minimal cost-per-test.
Double-Chamber Aperture Precision: Dedicated WBC (100µm) and RBC/PLT (70µm) apertures eliminate channel crosstalk.
10.4-Inch High-Resolution Touchscreen: Crisp 800x600 color display with intuitive graphical interface and real-time histogram display.
Massive 500,000 Test Storage: Onboard memory stores half a million patient test records with full graphical curves and demographics.
Automated Clog Clearance: Aperture cauterizing and high-pressure backflushing clear protein deposits at the touch of a button.
Built-in 57mm Thermal Printer: Instant report printing with customizable laboratory header; external USB laser printers supported.
Bidirectional LIS / HIS (HL7 Protocol): 4 USB ports and LAN port for seamless data interfacing with hospital software.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-300256 |
|---|---|
| Brand / Manufacturer | Avecon |
| Medical Category | Medical Devices (Analyzers) |
| Parameters | 21 reportable parameters (WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC) + 3 histograms |
| Principles | Electrical impedance for WBC/RBC/PLT counting; Cyanide-free photoelectric colorimetry for HGB |
| Sample Volume | Whole blood: 9µL, Pre-diluted blood: 20µL (ideal for peripheral capillary blood) |
| Aperture Diameters | WBC: 100µm, RBC/PLT: 70µm |
| Throughput | Constant 60 patient samples per hour |
| Reagents Required | 2 Reagent System (Diluent & Lyse) with internal lyse storage and diluent pre-heating |
| Display Interface | 10.4-inch color touchscreen display (800 x 600 resolution) |
| Data Storage | 500,000 complete sample results with graphical histograms and patient info |
| Quality Control | Two QC modes: Levey-Jennings (L-J) and X-B with manual and auto-calibration |
| Printer | Internal 57mm thermal printer + USB external laser printer support |
| Interface & Connectivity | 4 USB ports, Bi-directional LIS connection via LAN port (HL7 protocol) |
| Operating Environment | Temperature: 10°C - 35°C, Relative Humidity: 20% - 85% |
| Power Requirements | AC 100-240V, 50/60Hz, < 150V AC |
| Dimensions & Weight | 420 mm (L) x 295 mm (W) x 430 mm (H), Net Weight: < 28 kg |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Avecon MaxCOUNT HMT-60P 3-Part Hematology Analyzer units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
