Clinical workflow integration, diagnostic efficacy, and device utility

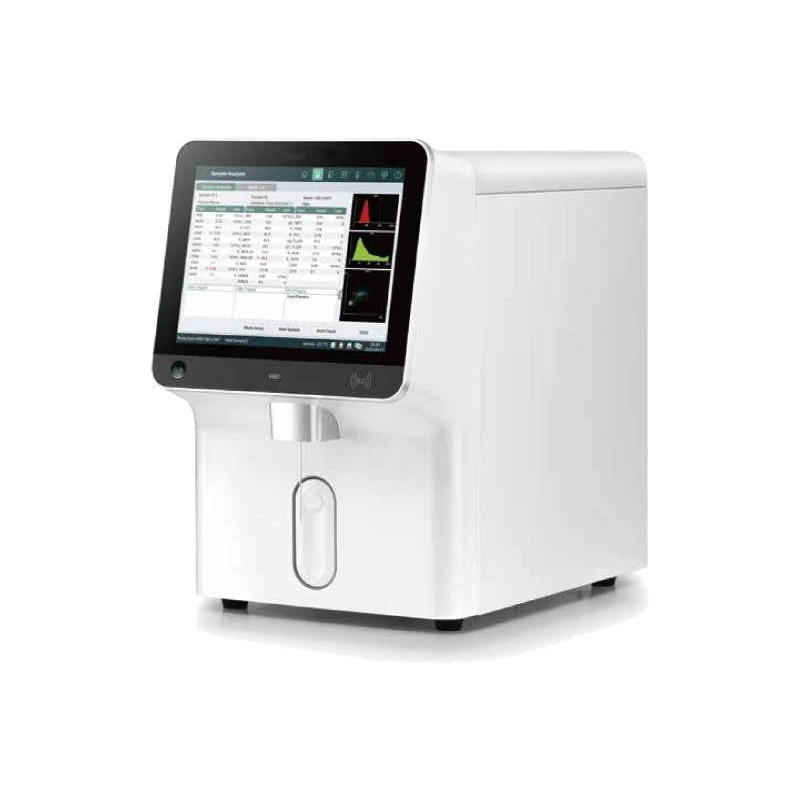

The Biogenix BI-H60 is an advanced 5-part differential clinical hematology analyzer developed for medium-to-large hospital laboratories, diagnostic chains, and medical institutions demanding definitive white blood cell differentiation. Combining state-of-the-art semiconductor laser flow cytometry with chemical dye staining and electrical impedance technology, the BI-H60 accurately categorizes leukocytes into Neutrophils, Lymphocytes, Monocytes, Eosinophils, and Basophils with exceptional optical resolution. The analyzer reports 25 definitive diagnostic parameters, 8 advanced research parameters (including NRBC%, NRBC#, LIC%, LIC#, ALY%, ALY#, NLR, and PLR), 3 standard histograms, and 2 high-definition multi-angle scattergrams (DIFF and BASO). The capability to detect nucleated red blood cells (NRBC) and immature granulocytes without manual slide review provides critical diagnostic value in intensive care, oncology, and hematology consultations. Featuring an expansive 12-inch high-definition color touchscreen, a fast throughput of 60 tests per hour, and an aspiration requirement of only 16µL whole blood, the BI-H60 combines clinical sophistication with everyday workflow efficiency. Complete with automated cleaning routines, 100,000 result memory, and bidirectional LIS integration, SMD Medicare provides direct wholesale supply and pan-India technical support.
Core technical and clinical performance highlights
Semiconductor Laser Flow Cytometry: Precise multi-angle laser scatter analysis for accurate WBC 5-part differentiation.
25 Reportable + 8 Research Parameters: Delivers comprehensive CBC+DIFF profiles including critical NRBC% and NRBC# clinical flags.
Dual Scattergrams & 3 Histograms: Clear DIFF and BASO scattergrams alongside WBC, RBC, and PLT size distribution histograms.
Generous 12-Inch Touch Display: Large intuitive graphic user interface displaying full patient scattergrams on a single screen.
60 Samples/Hour Throughput: Reliable, continuous sample processing engineered for demanding clinical workloads.
Low Sample Volume: 16µL for whole blood and capillary modes, 20µL for pre-diluted samples.
Cyanide-Free Safe Reagents: Environmentally compliant lyse chemistry for safe workplace operation.
100,000 Patient Storage & LIS Sync: Robust database with LIS/HIS auto-transmission via RJ-45 Ethernet.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-270258 |
|---|---|
| Brand / Manufacturer | Biogenix |
| Medical Category | Medical Devices (Analyzers) |
| Reportable Parameters (25) | WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Research Parameters (8) | LIC%, LIC#, ALY%, ALY#, NRBC%, NRBC#, NLR, PLR |
| Scattergrams & Histograms | 2 scattergrams (DIFF, BASO) + 3 histograms (WBC, RBC, PLT) |
| Throughput | 60 samples per hour |
| Measurement Principles | Semiconductor laser flow cytometry (WBC/DIFF/BASO), Electrical impedance (RBC/PLT), Cyanide-free colorimetric (HGB) |
| Sample Volume | Whole blood: 16µL, Capillary whole blood: 16µL, Pre-diluted: 20µL |
| Display Screen | 12-inch colorful TFT touch screen |
| Data Storage | 100,000 results with histograms and scattergrams, 60 QC files (100 data/file) |
| Linearity WBC | 0.0 - 500 x 10^9/L (CV ≤ 3.0%) |
| Linearity RBC | 0.0 - 8.5 x 10^12/L (CV ≤ 1.5%) |
| Linearity HGB | 0 - 250 g/L (CV ≤ 1.5%) |
| Linearity PLT | 0 - 4000 x 10^9/L (CV ≤ 5.0%) |
| Dimensions & Weight | 501 mm (D) x 320 mm (W) x 502.5 mm (H), Weight: 29.3 kg |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine Biogenix BI-H60 5-Part Hematology Analyzer units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
