Clinical workflow integration, diagnostic efficacy, and device utility

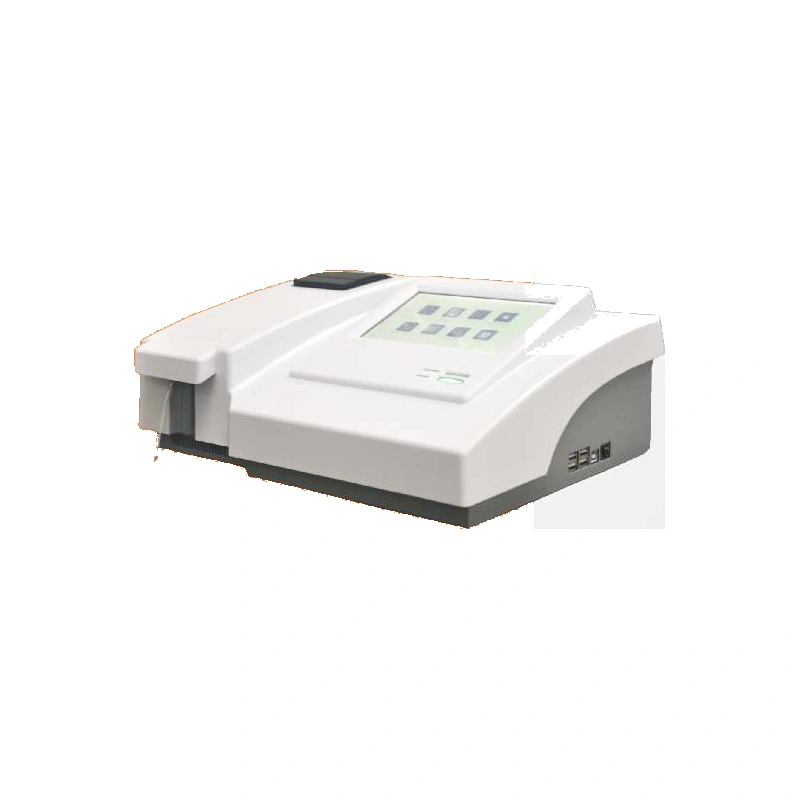

The Max LYZER Smart Clinical Chemistry Analyzer by Avecon Healthcare is a robust, semi-automated biochemistry analyzer engineered for diagnostic laboratories, hospital clinical pathology units, and healthcare centers. Equipped with an automatic 10-position filter wheel (featuring 7 precision interference filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm plus 2 open positions and 1 offset), the Max LYZER Smart supports a comprehensive menu of liver function (LFT), kidney function (KFT), lipid profiles, cardiac markers, and specialized turbidimetry assays. The analyzer offers versatile dual measurement options supporting both a stainless steel flow cell with quartz window (32µL measuring volume) and direct cuvette reading modes. Precise Peltier temperature regulation maintains incubation chambers at 25°C, 30°C, and 37°C (±0.1°C stability) for accurate enzyme kinetics and fixed-time reactions. Featuring a bright 7-inch TFT color touchscreen (800x480 resolution) with popup alphanumeric keypad and external mouse/keyboard support, the Max LYZER Smart can store up to 300 user-programmable test protocols and over 200,000 patient test results with comprehensive QC tracking. Complete with an integrated high-speed thermal printer and broad power fluctuation tolerance (100-240V), SMD Medicare offers the Max LYZER Smart with full warranty, direct wholesale pricing, and nation-wide lab installation.
Core technical and clinical performance highlights
Broad 340nm - 630nm Spectral Range: 7 standard high-precision optical filters plus 2 optional slots for complete biochemistry panels.
Comprehensive Assay Modes: Supports Endpoint (with/without blank), Kinetics, Two-point/Fixed-time, Absorbance, and Turbidimetry.
Dual Flowcell & Cuvette Reading: 32µL stainless steel quartz flowcell with programmable aspiration from 200µL to 5000µL.
Peltier Temperature Regulation: High-precision thermal control (Room Temp, 25°C, 30°C, 37°C) for sensitive enzyme assays.
7-Inch Color Touchscreen: High-resolution 800x480 display with real-time reaction curve graph monitoring.
Massive Test Memory: Stores up to 300 programmable test protocols and over 200,000 patient results with full Levey-Jennings QC.
Heavy-Duty Built-in Thermal Printer: Instant report printing with customizable hospital/lab header information.
Universal Power Supply (100-240V): Engineered with internal power-fluctuation protection for Indian power conditions.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-270260 |
|---|---|
| Brand / Manufacturer | Avecon |
| Medical Category | Medical Devices (Analyzers) |
| Analysis Methods | Endpoint, Two-point / Fixed-time, Kinetics, Absorbance, Turbidimetry, Linear & Non-linear calibration |
| Wavelength Range | 340nm - 630nm via automatic 10-position filter wheel (7 standard: 340, 405, 450, 505, 546, 578, 630 nm; Bandwidth <8nm) |
| Photometric Range | 0.0000 - 3.0000 ABS, Resolution: 0.0001 ABS, Stability: <0.005A/20min @ 340nm |
| Flowcell & Optical Path | Stainless steel flowcell with quartz window; 32µL volume; 10mm optical path; Aspiration 200 - 5000µL |
| Display & Input | 7-inch TFT colored touchscreen (800x480 pixels); Touch pen, finger popup keypad, external USB mouse/keyboard |
| Temperature Control | Peltier elements: Room temperature, 25°C, 30°C, 37°C |
| Memory & Storage | DDR2 SDRAM: Over 300 test programs and 200,000 results & QC memory |
| Printer | Built-in heavy-duty thermal printer (supports external HP laser printers via USB) |
| Interfaces & Processor | ARM Cortex-A8 720MHz CPU; 4 USB Host, 1 USB Slave, 1 Ethernet RJ-45 port |
| Power Requirements | Wide-range universal power supply: AC 100-240V, 50/60Hz |
| Dimensions & Weight | 400 mm (L) x 300 mm (W) x 160 mm (H), Net Weight: 7.5 kg |
