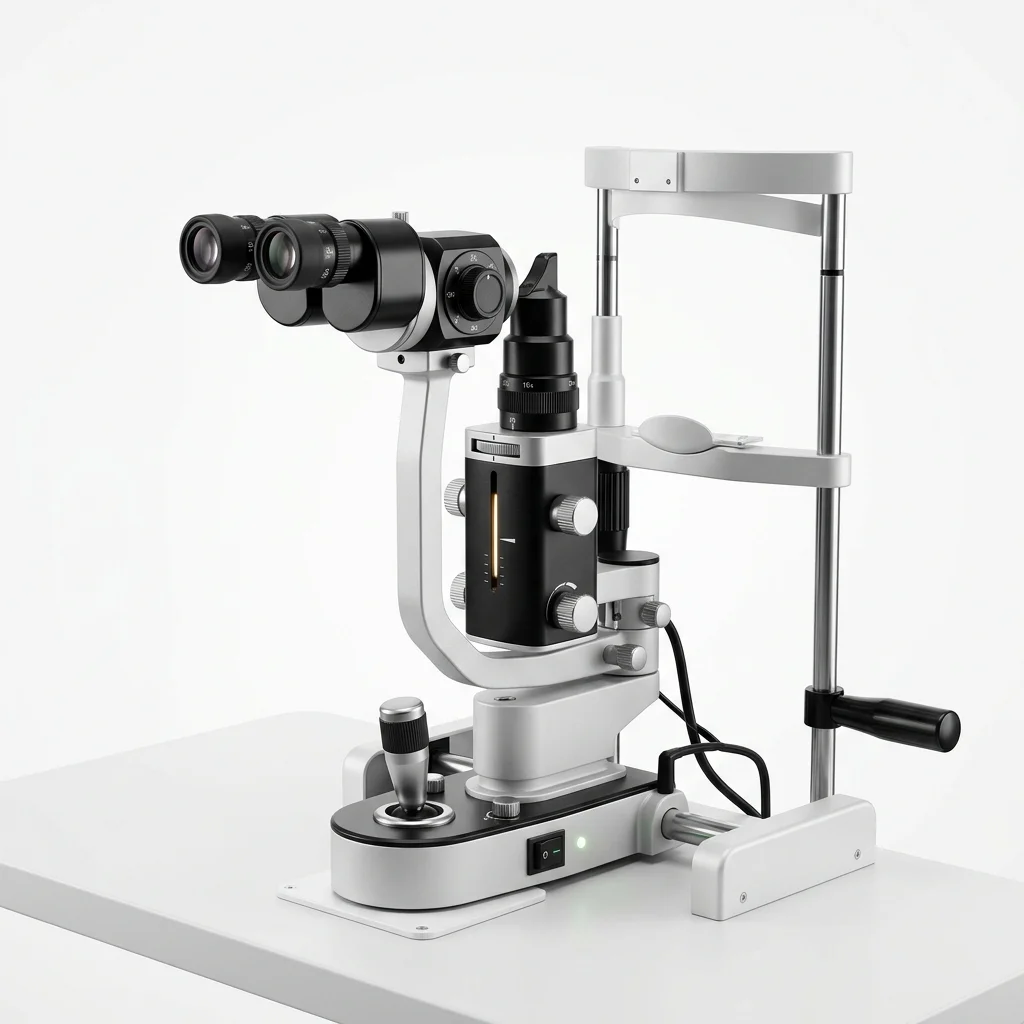

The Eye Care Haag Type Slit Lamp (Standard) is a two-step magnification ophthalmic biomicroscope engineered for routine clinical anterior segment eye examination. Built with Haag-Streit style tower illumination, precision optical coated lenses, continuously variable slit width (0-14mm), and smooth multi-directional joystick, it offers exceptional diagnostic clarity for cornea, lens, and iris examinations in clinics and hospitals.
Core technical and clinical performance highlights
Haag-Streit style tower illumination delivering bright, uniform, heat-free slit beam.
Two-step magnification changer: 10x and 16x via precision revolving drum.
Slit width continuously adjustable from 0mm to 14mm; Slit length: 1mm to 14mm.
Slit inclination up to 20° with 0° to 180° continuous horizontal and vertical slit rotation.
Built-in optical filters: Cobalt Blue, Red-Free (Green), Heat Absorbing, and Neutral Density.
Single-joystick multi-directional control for precise 3D slit positioning.
Adjustable chin rest with red LED patient fixation light and sturdy base plate.
Applanation tonometer mount compatible for standard Goldmann tonometry.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-390261 |
|---|---|
| Brand / Manufacturer | EyeCare Products (ECP) |
| Medical Category | Ophthalmology (Slit Lamps) |
| Warranty | 1 Year Comprehensive Warranty |
| Model | EyeCare Haag Streit Type Two-Step Standard |
| Optical System | Galilean Converging Stereoscopic Microscope |
| Magnification | Two-Step: 10x (Ø18mm field), 16x (Ø14.5mm field) |
| Eyepieces | 10x Wide-Field Eyepieces with Diopter Adjustment ±6D |
| Illumination | Tower Style Halogen / LED Illumination |
| Slit Width | 0 to 14 mm continuously adjustable |
| Slit Length | 1 to 14 mm continuously adjustable |
| Aperture Diameters | Ø0.2, 1, 2, 5, 10, 14 mm |
| Slit Angle | 0° to 180° continuous rotation |
| Filters | Cobalt Blue, Red-Free (Green), Heat Absorbing, Clear |
| Base Movement | Longitudinal: 90mm, Lateral: 100mm, Vertical: 30mm |
| Chin Rest Travel | 80 mm vertical travel |
| Fixation Target | Red LED Fixation Light |
| Warranty | 1 Year Manufacturer Warranty |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine EyeCare Haag Type Slit Lamp (Standard) units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
