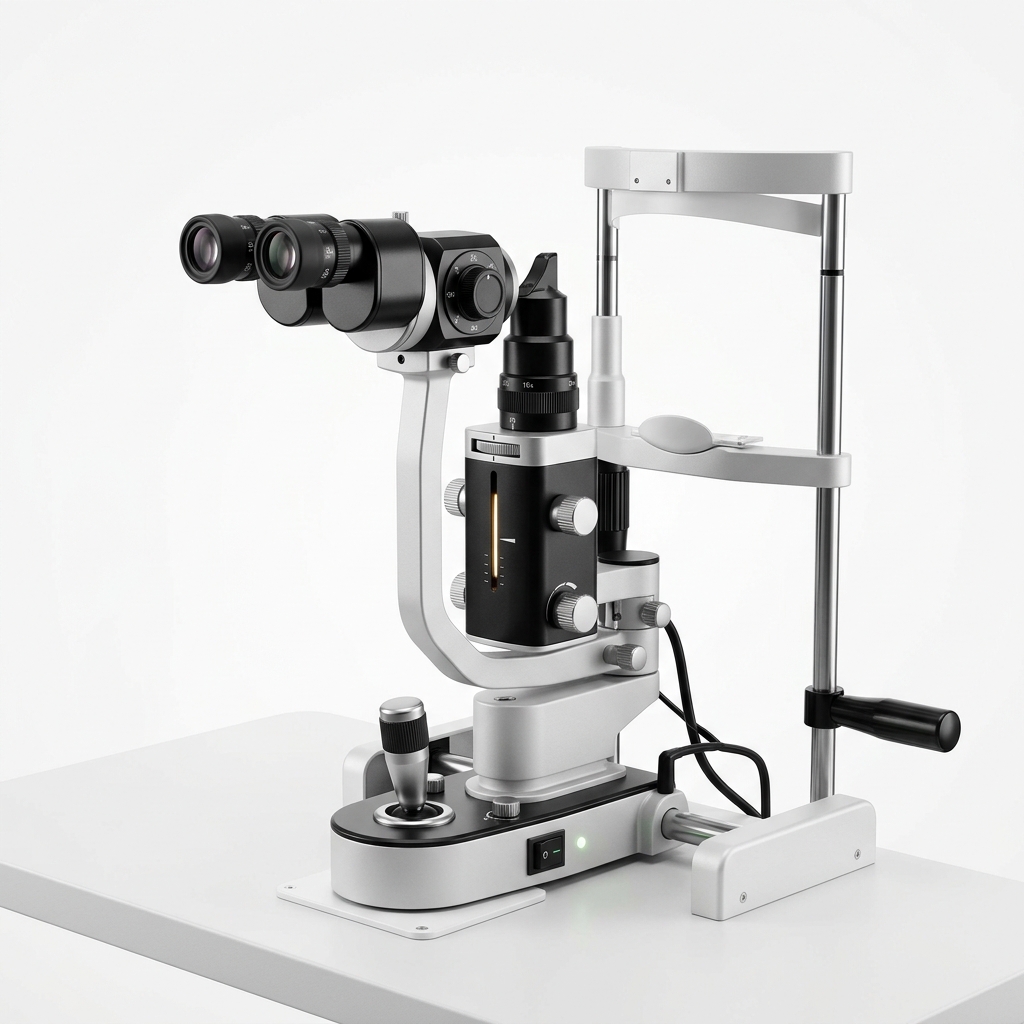

5-Step Galilean Optical Slit Lamp Microscope with High-CRI LED Illumination
The Slit Lamp Microscope (5-Step Galilean Optics) is a premier ophthalmic diagnostic biomicroscope engineered for anterior and posterior segment eye examinations in optometry practices, ophthalmic clinics, and eye surgery hospitals in India. Featuring parallel Galilean drum optics, a high-luminance LED slit tower with stepless intensity control, and integrated Goldmann applanation tonometer mounting, it delivers unmatched optical resolution, edge-to-edge chromatic fidelity, and comfortable binocular visualization.
Key Clinical & Engineering Specifications
- 5-Step Galilean Drum Magnification: Rapid 5-position revolving drum provides calibrated magnification steps of 6x, 10x, 16x, 25x, and 40x. High-eyepoint widefield 12.5x eyepieces with diopter compensation (±8D) guarantee clear viewing across pediatric and geriatric examinations.
- Warm-White LED Slit Illumination (CRI ≥ 92): Emits true-color 3500K warm white light with zero thermal infrared emission, preventing corneal heating and patient light intolerance during extended clinical sessions. LED rated for > 50,000 hours of continuous service.
- Versatile Slit Geometry & Rotation: Continuous slit length (0.2 mm to 14 mm) and stepless slit width adjustment (0 to 14 mm). Continuous 360° slit rotation with horizontal tilt for gonioscopic and fundus lens examinations.
- Built-in Clinical Optical Filters: Integrated turret includes Heat-absorbing filter, Cobalt blue filter (for fluorescein corneal tear film break-up time test), Red-free green filter (for retinal microaneurysm/hemorrhage inspection), and Yellow filter (enhancing fluorescence contrast).
- Universal Applanation Tonometer Mount: Pre-drilled spigot mount directly accommodates R-type and T-type Goldmann Applanation Tonometers for immediate IOP intraocular pressure measurement.
- Single-Handed 3D Fluid Joystick: Multi-directional joystick controls X-Y stage movement and Z-axis elevation with feather-light precision and rapid mechanical locking.
Package Inclusions & SMD Medicare Warranty
Includes heavy-duty base plate, motorized chinrest assembly with paper pins, breath shield, dust cover, spare LED module, calibration rod, and 12-month comprehensive warranty.
Technical Specifications
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-210258 |
|---|---|
| Brand / Manufacturer | Optiview |
| Medical Category | Ophthalmology (Slit Lamps) |
| Microscope Type | Galilean Drum Optical System (Parallel Optics) |
| Magnification Steps | 5-Step Revolving Drum: 6x, 10x, 16x, 25x, 40x |
| Eyepieces | 12.5x High-Eyepoint Widefield Eyepieces |
| Diopter Adjustment | -8D to +8D individual ocular diopter compensation |
| Interpupillary Distance | Adjustable 52 mm to 78 mm |
| Slit Width | 0 to 14 mm continuous variable adjustment |
| Slit Length | 0.2 mm, 1 mm, 2 mm, 3 mm, 5 mm, 10 mm, 14 mm presets & continuous |
| Slit Angle & Rotation | 0° to 180° continuous horizontal rotation; 5°, 10°, 15°, 20° vertical tilt |
| Aperture Diameters | 14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm |
| Optical Filters | Cobalt Blue, Red-Free (Green), Heat Absorbing, Yellow (Fluorescence enhancement) |
| Light Source | High-CRI Warm White LED (Color Rendering Index ≥ 92, 50,000 hr lifespan) |
| Tonometer Mount | Standard spigot & guide holes for R-Type / T-Type Goldmann Applanation Tonometers |
| Base Travel | Longitudinal: 110 mm | Lateral: 110 mm | Fine Vertical: 30 mm |
| Chinrest Travel | 80 mm vertical travel with fixation target LED lamp |
| Power Requirements | 100V - 240V AC, 50/60 Hz, 35W |
| Certifications | ISO 13485:2016, CE Medical Device, BIS Standard |
