Product Overview & Clinical Scope
Clinical workflow integration, diagnostic efficacy, and device utility

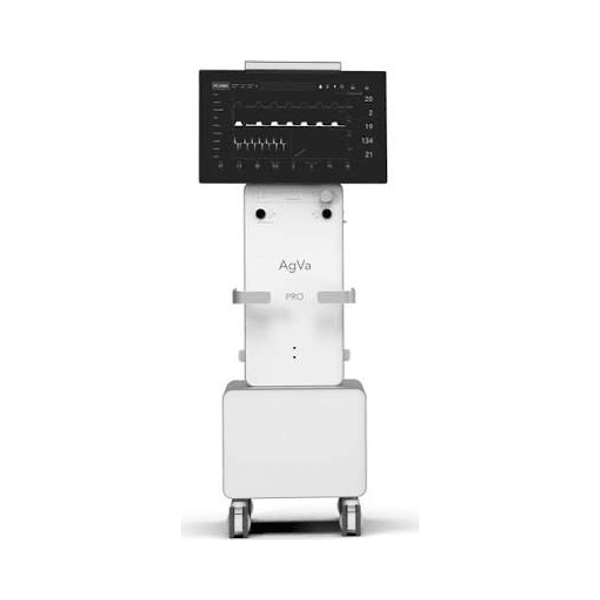

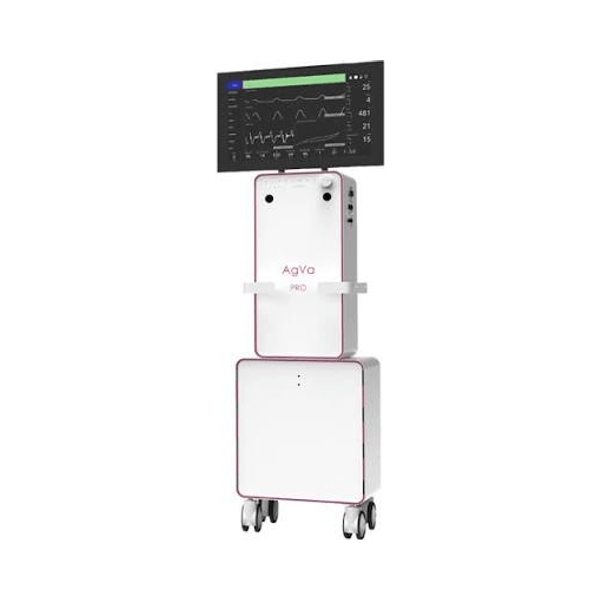

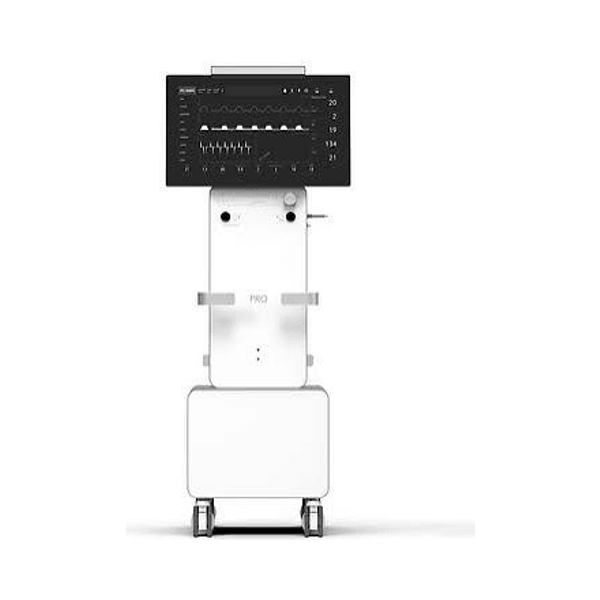

The Ag Va Pro is a next-generation, turbine-driven advanced ICU ventilator designed for high-acuity adult, pediatric, and neonatal critical care patients. Built with state-of-the-art closed-loop Fi O2 titration, volume-targeted pressure support (V-TAS), and high-performance turbine architecture, it eliminates the dependency on bulky external medical air compressors while ensuring clinical precision and rapid response times. Featuring an ultra-responsive 24-inch full-color multi-touch display, the Ag Va Pro delivers real-time graphic loop analysis (P-V, F-V, P-T), integrated high-flow nasal cannula (HFNC) therapy, non-invasive (NIV) ventilation, and AI-assisted intelligent ventilation modes. Equipped with high-efficiency H13 HEPA viral/bacterial filtration and a multi-hour rechargeable lithium-ion battery backup, it guarantees uninterrupted respiratory life support across ICUs, CCUs, step-down units, and emergency patient transport. SMD Medicare supplies 100% brand-new Ag Va Pro ventilators with complete patient circuits, certified biomedical installation, and comprehensive pan-India hospital warranty.
Key Clinical Capabilities & Features
Core technical and clinical performance highlights
Universal Patient Compatibility: Comprehensive invasive and non-invasive ventilation for Adult, Pediatric, and Neonatal patients.
High-Performance Turbine Drive: Delivers high peak flows up to 210 L/min without requiring external high-pressure compressed medical air.
Extra-Large 24-Inch Multi-Touch Display: Brilliant Full HD interface displaying 4 simultaneous waveforms, loops (P-V, F-V), and 30+ monitored respiratory parameters.
Comprehensive Ventilation Modes: PC-CMV, PC-SIMV, PSV, PC-AC, VC-SIMV, VC-CMV, VC-AC, AI-VENT, CPAP/PS, PC-BPAP, and High-Flow Nasal Cannula (HFNC).
Smart Closed-Loop Fi O2 Control: Automated Fi O2 titration seamlessly adjusting oxygen concentration based on live patient pulse oximetry (Sp O2).
V-TAS (Volume Targeted Assist System): Guarantees exact tidal volume delivery in pressure-controlled modes while protecting fragile lung tissues.
Infection Control & Safety: Hospital-grade H13 HEPA particulate filtration on inspiratory and expiratory pathways.
Extended Battery Runtime: High-capacity internal lithium battery providing up to 3 hours of continuous transport operation.
Technical Specifications
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-90258 |
|---|---|
| Brand / Manufacturer | AgVa Healthcare |
| Medical Category | Hospital Equipment (Ventilators) |
| Packaging | 1 Unit Complete Set with Trolley & Patient Circuit |
| Warranty | 1 Year On-site Warranty |
| Brand | AgVa Healthcare |
| Model | AgVa Pro |
| Patient Categories | Adult, Pediatric, Neonatal |
| Operating Mechanism | Independent High-Speed Turbine (No Compressor Needed) |
| Display | 24-Inch Full-Color Multi-Touch Capacitive Screen |
| Tidal Volume Range | 2 mL to 2,000 mL |
| Respiratory Rate | 2 to 100 bpm |
| Inspiratory Time (Ti) | 0.1 to 10.0 seconds |
| I:E Ratio | 4:1 to 1:10 |
| Inspiratory Pressure (Pinsp) | 5 to 80 cmH2O |
| PEEP Range | 0 to 50 cmH2O |
| FiO2 Oxygen Concentration | 21% to 100% (Electronically Controlled) |
| Flow Trigger Sensitivity | 0.2 to 20 L/min |
| Pressure Trigger Sensitivity | -20 to -0.5 cmH2O |
| Advanced Therapy | Integrated High Flow Nasal Cannula (HFNC) up to 80 L/min |
| Monitoring Waveforms | Pressure-Time, Flow-Time, Volume-Time, P-V Loop, F-V Loop |
| Safety Alarms | High/Low Minute Volume, High/Low Pressure, Apnea Alarm, O2 Source Failure, Circuit Disconnect, Low Battery |
| Battery Backup | Internal Rechargeable Lithium-Ion Battery (Up to 3 Hours) |
| Warranty | 1-Year Comprehensive On-Site Warranty + Biomedical Support |
Clinical Usage & Operational Protocols
Standard operating guidance for biomedical technicians and clinical staff
Verified Doctor & Client Reviews
No reviews published yet
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Frequently Asked Procurement Questions
Key questions regarding warranty, logistics, GST billing, and clinical installation
What warranty and support is provided with this equipment?
All medical equipment carries official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and factory biomedical engineering evaluation.
How is heavy hospital equipment packed and shipped?
We use damage-proof wooden crate packaging and insured freight logistics delivering across all Indian states with real-time tracking within 3 to 7 business days.
Do you provide official GST Invoices and Proforma Quotations?
Yes, 100% compliant GST invoices with standard HSN codes are provided for hospitals, clinics, and dealers to claim full Input Tax Credit (ITC).
How is installation and clinical setup handled?
We provide pre-installation technical checklists, complete user operating manuals, and video/on-site biomedical engineer guidance for seamless clinical deployment.
