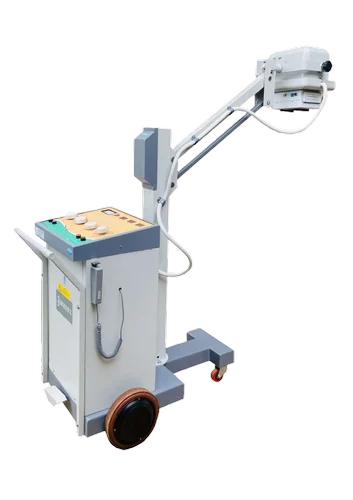

The 100mA Spring Balance Mobile X-Ray Unit combines rugged mechanical reliability with refined clinical radiation output. Featuring a precision spring-counterpoise articulated boom arm, this unit neutralizes tube-head weight to provide effortless vertical glide and positioning for bed-bound patients in nursing homes, general wards, orthopedic centers, and tier-2/tier-3 community hospitals.
Supplied with factory test certificates, AERB documentation support, lead-lined collimator, and 12-month comprehensive on-site warranty. SMD Medicare provides prompt spare parts supply (transformers, tubes, HT cables) and pan-India engineer commissioning.
Core technical and clinical performance highlights
Generator Output: 100m A capacity suitable for standard extremity, chest, and mobile ward radiography.
Spring Counter-Balanced Arm: Features a mechanical spring-loaded articulated arm for precise and easy positioning of the tube head.
K Vp Range: Adjustable up to 100 k Vp in multiple steps for varying penetration requirements.
Mobility: Mounted on a heavy-duty chassis with anti-static castors and a reliable locking mechanism for secure placement.
Control Panel: Microprocessor-based digital control panel displaying precise k V, m A, and m As parameters.
Official OEM technical parameters and procurement specifications
| Product SKU / Code | SMD-30266 |
|---|---|
| Brand / Manufacturer | |
| Medical Category | Hospital Equipment (X-Ray Machines) |
| Model Type | 100mA Spring Balance Mobile Radiography System |
| Generator Power | Full-Wave Silicon Rectified Diagnostic Generator (6 kW) |
| Current Stations (mA) | 100 mA max (25 mA, 50 mA, 100 mA selective positions) |
| kVp Output Range | 40 kVp to 100 kVp in 2 kVp steps |
| mAs Range | 0.2 to 200 mAs in 20 calibrated increments |
| Timer Range | 0.02 sec to 3.0 sec electronic solid-state timer |
| Tube Assembly | Stationary Anode X-ray tube encased in lead-shielded oil tank |
| Focal Spot | 1.8 mm x 1.8 mm |
| Tube Movement | Vertical travel: 450 mm to 1850 mm; Arm extension: up to 900 mm |
| Counterpoise System | Calibrated tension spring mechanism with mechanical angle lock |
| Collimator | Manual adjustable lead shutter collimator with high-luminance centering lamp |
| AERB Compliance | Type approved as per AERB radiation protection guidelines |
| Exposure Cord | Coiled spring cable extending up to 3 meters with dual-stage push button |
| Power Supply | 230V AC ± 10%, 50 Hz, Single Phase (Standard 15A socket) |
| Chassis Dimensions | Compact width 730 mm x length 1200 mm, easily fits standard hospital lifts |
| Certifications | AERB Approved, ISO 9001:2015, ISO 13485:2016 |
Are you a healthcare professional or hospital staff using this device? Share your clinical experience.
Key hospital procurement terms regarding warranty, pan-India logistics, GST billing, clinical calibration, and bulk contracts
All genuine 100mA Spring Balance Mobile X-Ray Unit units carry official 1 to 2 Years OEM Manufacturer Warranty covering manufacturing defects and biomedical engineering evaluation. Dedicated technical support and repair assistance are provided across India and international client destinations.
We use damage-proof wooden crate packaging with internal foam cushioning for both domestic freight and global air/sea cargo. Shipments are delivered across all Indian states in 3 to 7 business days with transit insurance, while international export orders (USA, UK, Europe, UAE, Asia) include export documentation, customs clearance, and global consignment tracking.
Yes, 100% compliant GST tax invoices with certified HSN codes are issued for every order. Hospitals, registered medical institutions, and equipment dealers can claim full Input Tax Credit (ITC) on their purchases.
We supply pre-installation civil and electrical checklists, user operating manuals, and video/on-site biomedical engineer guidance. Our certified engineers ensure proper calibration and operational testing before clinical handover.
Yes, SMD Medicare offers special institutional pricing, volume tender rates, and turnkey OT/ICU packages for hospitals, diagnostic centers, and medical supply dealers. You can request a tailored commercial proforma quotation directly.
Yes, authentic OEM spare parts, specialized accessories, and post-warranty Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) are available to ensure zero clinical downtime.
